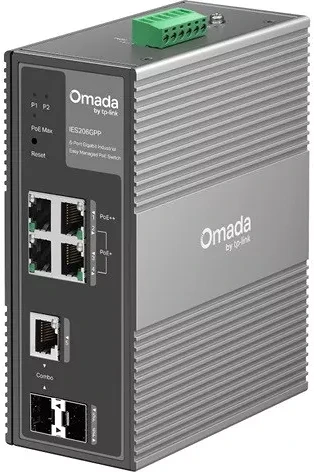

Tp-link 1XSFP + 1XGIGABIT
kombó SFP Fémházas, IES206GPP

TP-LINK Switch Ipari 3x1000Mbps(POE+) + 1x1000Mbps(POE++) + 1xSFP + 1xGigabit kombó SFP Fémházas, IES206GPP HARDWARE FEATURES Interface • 1× 10/100/1000 Mbps PoE++ RJ45 Ports• 3× 10/100/1000 Mbps PoE+ RJ45 Ports• 1× Gigabit SFP/RJ45 Combo Slot• 1× Gigabit SFP Slot• Auto-Negotiation/Auto MDI/MDIX Fan Quantity Fanless Installation • DIN-rail mounting• Wall mounting Physical Security Lock ? Power Supply 12-57V 1+1 Redundant DC Power Input PoE Ports (RJ45) • Standard: 802.3af/at/bt compliant• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port• PoE Budget:- 60W (Input: 12V / 7.0A - 21V / 3.5A))- 120W (Input: 21V / 6.5A - 57V / 2.3A) Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) Surge Protection • ±6 kV in common mode for Ethernet ports• ±4 kV in common mode for DC power input ports PERFORMANCE Switching Capacity 12 Gbps Packet Forwarding Rate 8.93 Mpps MAC Address Table 8K Packet Buffer Memory 4 Mbit Jumbo Frame 15 KB SOFTWARE FEATURES Quality of Service • 802.1p DSCP Priority• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rate Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control L2 Features • Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP• Spanning Tree- STP (802.1d)- RSTP (802.1w) L2 Multicast • IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave VLAN • MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID Transmission Method Store-And-Forward Management Features Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Centralized Management • Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller Management Features • Web-based GUI• DHCP Client• Cable Diagnostics• Digital Diagnostic Monitoring (DDM)• Automatic Device Discovery? • Batch Configuration? • Batch Firmware Upgrading? • Unified Configuration? OTHERS Certification FCC, CE, RoHS Package Content • IES206GPP• DIN-Rail Mounting Bracket• Wall-Mounting Plates• Installation Guide Environment • Operating Temperature: -40?~75? (-40?~167?)• Storage Temperature: -40?~85? (-40?~185?)• Operating Humidity: 5%~95% non-condensing• Storage Humidity: 5%~95% non-condensing
