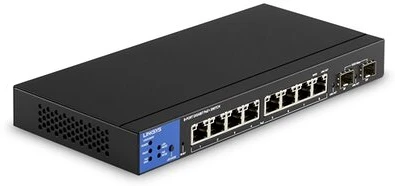

Linksys LGS310MPC 8-PORT
Lgs310mpc poe switch

58 390 Ft-tól, 88 200 Ft-ig, 3 ajánlat

Árfigyelés

Listába

LGS310MPC-EU Linksys 8-Port Managed PoE+ Gigabit Switch + 2 SFP Ports - Black

58 390 Ft

Tovább a bolthoz

27018 Linksys SMB LGS310MPC 8port POE+ GbE LAN +2 SFP Port Smart menedzselhető asztali Switch

73 990 Ft

Tovább a bolthoz

LGS310MPC-EU Linksys LGS310MPC PoE switch

88 200 Ft

Tovább a bolthoz

Model Name:

LGS310MPC
Routing:

Static Routing, IPv4 (63 max entries), IPv6 (21 max entries)
Ports:
- 8 Gigabit Ethernet
- 2 Gigabit SFP
Memory:

256MB
LEDs:

Power, Fault, PoE Max, LAN Mode, PoE Mode
Forwarding Rate:

14.88 Mpps
Switching Capacity:

20 Gbps
MAC Address Table Size:

8K
Jumbo Frame (FE, GE):

10Kbytes
Dimensions (LxWxH):
- 240 x 105 x 27 mm
- 9.45 x 4.13 x 1.06 in
Weight:

636 g (1.40 lb)
Power Consumption:

133.77W
Power Dedicated to PoE+:

110W
Power Input:
- 100–240V
- 50–60 Hz
- 2.2A
Power Saving:

EEE
Operating Temperature:

0 to 40°C (32 to 104°F)
Storage Temperature:

-20 to 70°C (-4 to 158°F)
Operating Humidity:

10 to 90% RH
Storage Humidity:

5 to 95% RH (non-condensing)

Spanning Tree:

IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s Multiple Spanning Trees (16 instances)
Link Aggregation:

IEEE 802.3ad LACP, up to 8 groups with up to 8 ports per group
VLAN:

Port-based and 802.1q VLANs, Management VLAN, Guest VLAN support
Number of VLANs Supported:

256 active VLANs (4,096 range)
Auto Voice VLAN:

Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:

IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention:

Head of line (HOL) blocking prevention
Port Mirroring:

Traffic on multiple ports (up to 3 ports) can be mirrored to another port for analysis with a network analyzer
Security Features:
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port Security (256 max entries per port)
- DOS Attack Prevention
- Port Isolation (Protected Ports)
Storm Control:

Support broadcast/unknown multicast/unknown unicast 16kbps~1000Mbps: in steps of 16kbps
Quality Of Service:
- 8 hardware queues
- Strict, Weighted Round Robin (WRR)
- Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
Access Control:

Ingress, MC Based ACL, IPv4 Based ACL, IPv6 Based ACL, ACL Binding, Action: permit/deny
RMON:

Embedded remote monitoring (RMON 1, 2, 3, 9) software agent support for enhanced traffic management, monitoring, and analysis
Management Interface:
- HTTP
- HTTPS
Other Management:

Telnet, SSH, DHCP client, system log, configuration upload and backup via HTTP or TFTP, PING, Traceroute, dual images, SNTP
SNMP:
- Version 1
- Version 2c
- Version 3
Firmware Upgrade:

Web Browser (HTTP/HTTPS)
Rate Limiting:

Rate limit according to network speed, 12kbps~1000Mbps: in steps of 16kbps
Warranty and Support:
- 5 Year Warranty (most countries)
- 2 Year Warranty (Australia and New Zealand)
