Extralink 4U 600X600 BLACK
4u 600x600 black | rackmount cabinet | wall mounted

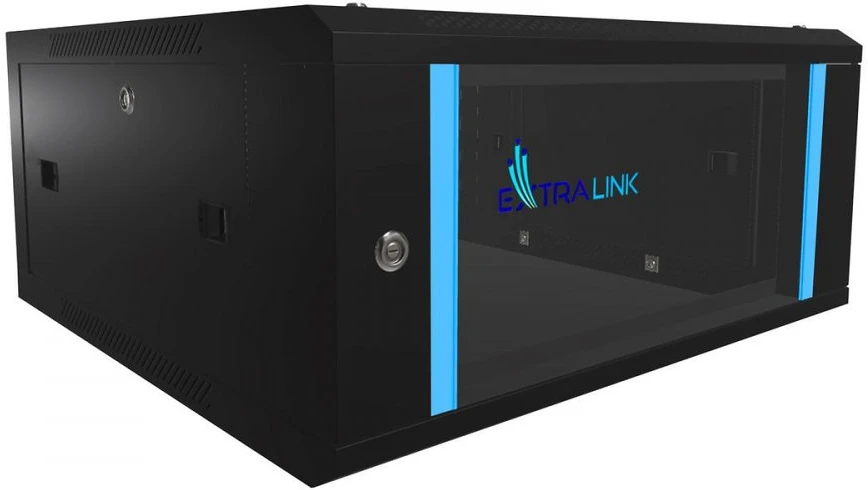

EXTRALINK 4U 600x600 rack cabinet, black

The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet, while the front door has a tempered glass pane with the possibility of opening to the left or right side.

Clearly marked cabinet height

The vertical rails have a corresponding height designation which is 4U (unit) . The total height of the cabinet is 28 cm .

Easy removal of side walls

Snap fasteners on the side walls allow for their disassembly. Locks and keys are included .

Fan-installed ceiling

On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices, as well as additional conduit for pulling out cables.

Cabinet construction - drawing

Features

Features

• Standard 19'' mounting, welded frame, reliable design
• The frame structure is prepared for self-assembly, which makes it easy to transport, saving shipping costs
• Standing/Wall Mounting
• Easy installation (patent)
• Removable side panels
• Holes for cable entry, both on the top cover and on the bottom panel
• Tempered glass front door, swivel angle exceeding 180 degrees
