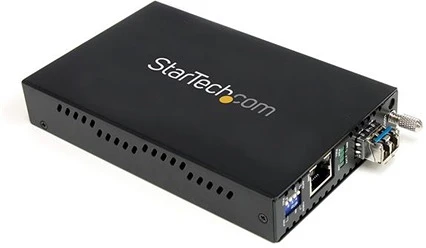

The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
| Hardware | |
|---|---|
| PoE | No |
| WDM | No |
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Single Mode |
| Max Transfer Distance | 40 km (24.8 mi) |
| Maximum Data Transfer Rate | 2000 Mbps (full duplex mode) |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm |
| Connector(s) | |
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female |
| 1 - RJ-45 Female | |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.36A |
| Input Voltage | 115 ~ 230 AC |
| Output Current | 1.6 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption | < 4W |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Physical Characteristics | |
| Color | Black |
| Product Height | 0.9 in [24 mm] |
| Product Length | 6.1 in [155 mm] |






|
