Design
Black
Moonlight White
Network Standard
WiFi 6 (802.11ax)
IPv4
IPv6
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
Product Segment
AX10000 ultimate AX performance
WiFi Data Rate
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
Antenna
Internal antenna x 9
Transmit / Receive
2.4GHz 2x2
5GHz-1 4x4
5GHz-2 4x4
Processor
1.7GHz tri-core processor
Memory
256MB Flash
512MB DDR4 RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4G Hz
5 GHz-1
5 GHz-2
Operating Mode
Wireless router mode
Access point mode
I/O Ports
1 x 2.5 Gigabit WAN Port
3 x Gigabit LAN Ports
1 x USB 3.2 Gen 1x1 Port
Buttons
WPS Button
Reset Button
Power Switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package Content

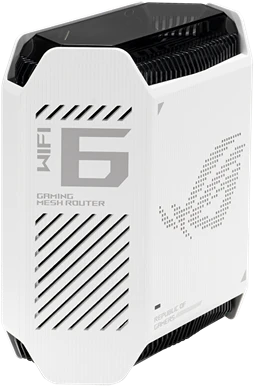

ROG Rapture GT6
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
880 g
Product Dimensions
172.3 x 78.1 x 176.75 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
Game
Game Boost / Acceleration
Game Radar
WTFast
ROG_First
OpenNAT (Game Profile)
Gaming Port
Parental Control
"Allow you to block access to unwanted websites and apps."
Parental Control Customized Internet Schedule
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Guest Network Connection time limit
Security
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
AiProtection
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History
WAN
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)
Wireless
MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Wi-Fi Radar
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
