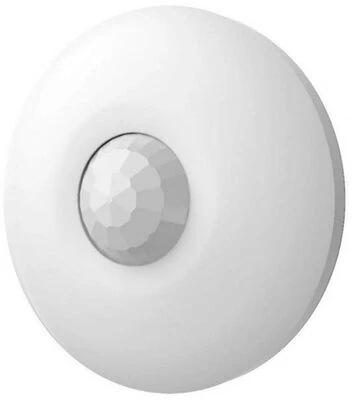

Hikvision DS-PDCL12-EG2-WE

Hikvision DS-PDCL12-EG2-WE
Ax pro érzékelő -

• Detection Range: 12m / 360°
• SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
• Fully remote configurable through App
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

Available models:

DS-PDCL12-EG2-WE

• Detection MethodPassive Infrared
• Detection Range12m
• Detection Angle360°
• Detection Zones172
• Detectable Speed0.3～2m/s
• SensitivityAuto;Low
• White Light Filter6500lux
• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport

• Feature
• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

• Interface
• Power SwitchPower Up Enrolling
• LED IndicatorBlue(Alarm)

• Transmission
• Transmission TechnologyTri-X Wireless
• Transmission MethodTwo-Way RF Wireless
• Transmission Frequency868MHz
• Transmission SecurityAES-128 Encryption
• Transmission Range(Free Space)1.6Km
• Frequency HoppingSupport
• Enrolling MethodPower up;Remote ID;QR Code

• Electrical Characteristics
• Standard Battery LifeUp to 5 years (standby time)
• Power SupplyBattery Powered
• Battery TypeCR123A × 1
• Typical Voltage3V

• General
• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity10% to 90%
• Dimension(WxHxD)φ101.2 mm x 32.9 mm
• Weight109.5g
• Mounting Height2.4 to 4m
• Mounting MethodCeiling
• Application ScenarioIndoor
