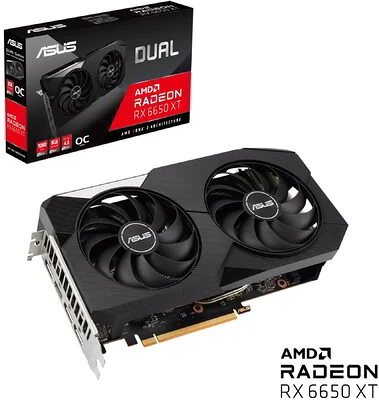

ASUS Dual Radeon™ RX 6650 XT OC Edition 8GB GDDR6 is armed to dish out frames and keep vitals in check.
- OC mode : Up to 2689 MHz (Boost Clock)/up to 2467 MHz (Game Clock)
- Gaming mode : Up to 2669 MHz (Boost Clock)/up to 2447 MHz (Game Clock)
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Auto-Extreme Technology uses automation to enhance reliability.
- A protective backplate prevents PCB flex and trace damage.
Graphic Engine
Radeon RX 6650 XT
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
8GB GDDR6
Engine Clock
OC mode : up to 2689 MHz (Boost Clock)/up to 2467 MHz (Game Clock)
Gaming mode : up to 2669 MHz (Boost Clock)/up to 2447 MHz (Game Clock)
Stream Processors
2048
Memory Speed
17.5 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
Yes
Accessories
1 x Collection Card
1 x Speedsetup Manual
Software
ASUS GPU Tweak II & Drivers: please download all software from the support site.
Dimensions
243 x 134 x 49 mm
9.6 x 5.3 x 1.9 inch
Recommended PSU
650W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
