| Requires Expansion Slot Standard | PCI Express 4.0 x16 |
| Form Factor | Full-height |
| Video Chipset | AMD Radeon Pro W6800 |
| GPU Quantity | 1 |
| Stream Processors Quantity | 1 x 3840 |
| Compute Units Quantity | 28 |
| Max. Monitors Supports | 4 |
| Maximum Resolution | 7680x4320 |
| 2D/3D Features | AMD Eyefinity
AMD RDNA Architecture
AMD Radeon Media Engine
AMD Radeon VR Ready Creator
AMD Radeon ProRender
AMD Radeon PRO Software |
| API Supports | OpenGL 2.1
DirectX 12.0
OpenGL 4.6 |
| Video Memory Type | Video Controller Memory |
| Memory Type | GDDR6 SDRAM |
| Installed Video Memory Storage Capacity | 1 x 32 GB |
| Memory Bus Bandwidth | 1 x 256 bit |
| Memory Bandwidth | 1 x 512 GB/s |
| Mini DisplayPort Interface Quantity | 6 |
| Requires Operating System | Linux
Microsoft Windows 10 |
| External Power | 8 pin + 6 pin |
| PSU Output Power Required | 650 W |
| Cooling System Type | Active Heatsink |
| Included Accessories | Quick Start Guide |
| Cable Included | Power Cable |
| Depth (mm) | 267 mm |
| Warranty Products Returnable | Yes |
| Warranty Term (month) | 36 month(s) |
| Pack Weight Netto (kg) | 1.4 kg |
| Retail Packaging Net Weight Carton | 0.6 kg |
| Retail Packaging Net Weight Plastic | 0.1 kg |

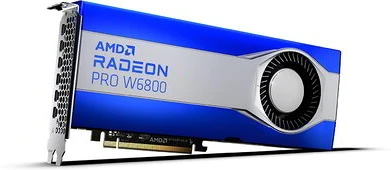

AMD Radeon™ PRO W6800 GPU Specifications
GPU Architecture
AMD RDNA™ 2
Hardware Raytracing
Yes
Lithography
TSMC 7nm FinFET
Ray Accelerators
60
Stream Processors
3840
Compute Units
60
Peak Half Precision (FP16) Performance
35.66 TFLOPs
Peak Single Precision (FP32) Performance
17.83 TFLOPs
Peak Double Precision (FP64) Performance
1.11 TFLOPs
Transistor Count
26.8 Billion
OS Support
Windows 10 - 64-Bit Edition
Linux x86_64
Requirements
External Power Connectors
1x PCIe® 6-pin, + 1x PCIe® 8-pin
Total Board Power (TBP)
250W Peak
PSU Recommendation
650W Minimum
GPU Memory
Dedicated Memory Size
32 GB
Dedicated Memory Type
GDDR6
Infinity Cache
128 MB
Memory Interface
256-bit
Peak Memory Bandwidth
Up to 512 GB/s
Memory ECC Support
Yes
Board Specifications
Form Factor
PCIe® Add-in Card
Bus Type
PCIe® 4.0 x16
Cooling
Active
Display Outputs
DisplayPort™
6x Mini-DisplayPort™ 1.4 with DSC
Display Configurations
6x @ 5120x2880px (5K)
2x @ 7680x4320px (8K)
HDR Support
Yes
8K Support
Yes
Dimensions
Board Height
Full Height
Board Length
10.5" (267 mm)
Board Width
Double Slot
Additional Features
Supported Rendering Formats
4K H264 Encode and Decode
AV1 Decode
H265/HEVC Encode and Decode
Supported Technologies
AMD Remote Workstation
AMD Radeon™ Media Engine
AMD Radeon™ PRO Software
AMD Radeon™ VR Ready Creator
AMD Eyefinity Technology (Professionals)
AMD Radeon™ ProRender
3D Stereo Support
Yes
Software API Support
DirectX®
12.0 (feature level 12_1)
OpenGL®
4.6
OpenCL™
2.1
Product Basics
Product Family
AMD Radeon™ Pro
Product Line
AMD Radeon™ PRO W6000 Series
Platform
Desktop
Launch Date
06/08/2021
