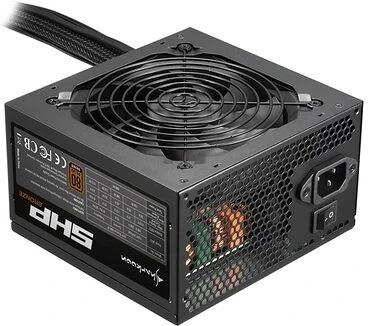

Sharkoon 600 W 20+4 PIN
600w 80+ bronze shp

General
Form Factor:
ATX 2.3
Continuous Power:
600 W
ErP Compliant:
?
Active PFC:
?
Technology:
AC/DC
MTBF:
Min. 100,000 Hours
Operating Temperature:
0 °C - 40 °C
Standby Power Consumption:
0.3 W
Weight incl. Fixed Cables:
1.6 kg
Dimensions (L x W x H):
140 x 150 x 86 mm
Housing Color:
Black



Input
Voltage:
100 - 240 VAC
Frequency:
47 - 63 Hz
Input Current (110/230 V):
10 A / 5 A



Output
12 V Rail(s):
1
Load 3.3 V:
20 A
Load 5 V:
20 A
Max. Combined Power 3.3 V + 5 V:
120 W
Load 12 V1:
45 A
Max. Combined Power 12 V:
540 W
Load 5 VSB:
2.5 A
Load -12 V:
0.3 A



Cable and Connectors
Cable Configuration:
Fixed
Flat Cables:
?
Maximum Cable Length:
120 cm
Cable Length Mainboard Connector:
55 cm
Cable Length CPU Connector:
60 cm + 15 cm
Cable Length PCIe Connector:
55 cm + 15 cm
Cable Length to First Peripheral Connector:
55 cm
20+4-Pin Mainboard Connector:
1
4+4-Pin CPU Connector:
1
8-Pin CPU Connector:
1
6+2-Pin PCIe Connector:
2
SATA Connector:
6
IDE Connector:
3



Fan
Fan Size:
120 mm
Bearing Type:
Sleeve Bearing



Protections
OVP (Over Voltage Protection):
?
UVP (Under Voltage Protection):
?
SCP (Short Circuit Protection):
?
OPP (Over Power Protection):
?



Safety Certifications
CE:
?
FCC:
?



Package Contents
SHP Bronze 600W
Power Cord
Mounting Screws
Manual



EAN Code
4044951028962
