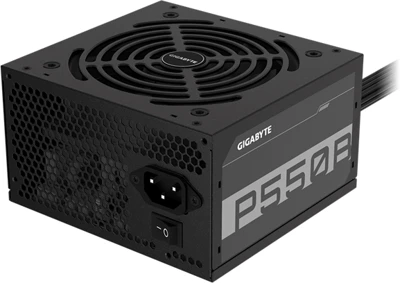

Gigabyte P550B

Gigabyte P550B
550w 80+ bronze

• Model

  P550B

• Type

  Intel Form Factor ATX 12V v2.31

• PFC

  Active PFC(>0.9 typical)

• Input Voltage

  100-240 Vac(full range)

• Input Current

  8-4 A

• Input Frequency

  60-50 Hz

• Output Capacity

  550W

• Dimension

  150 x 140 x 86 mm

• Fan Type

  120mm Hydraulic Bearing (HYB) Fan

• 80 PLUS

  Bronze

• Efficiency

  85% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  100-500ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All black

• Connectors

  ATX/MB 20+4 Pin x 1 : 550mm*1

  CPU/EPS 4+4 Pin x 1 : 600mm*1

  PCI-e 6+2 Pin x 2 : 550mm+150mm*1

  SATA x 6 : 500mm+120mm+120mm*2

  4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
