FEATURES
Single +12V Rail : All power comes from a single +12V source, ensuring consistent output through all connected cables.
120mm HDB Fan : The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.
DC-to-DC Technology : The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.
Flat Black Cables : The flat cables take up less space and are easier to manipulate within the chassis.
80 PLUS Bronze Efficiency 230V EU Efficiency : This certification guarantees a typical efficiency of 88% under normal operating conditions.
5 Year Warranty : This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.
SPECIFICATIONS
Product Name

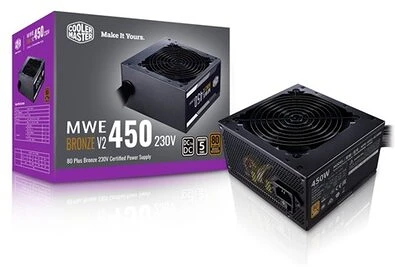

MWE 450 Bronze 230V V2
Item Code
MPE-4501-ACABW-B
ATX Version
Intel ATX 12V V2.52
PFC
Active PFC
Input Voltage
200-240V
Input Current
4A
Input Frequency
50-60Hz
Dimensions (L x W x H)
140 x 150 x 86mm
Fan Size
120mm
Fan Bearing
HDB
Fan Speed
1500 RPM
Noise @ 20%
11.18dB-A
Noise @ 50%
17.1dB-A
Noise @ 100%
29.5dB-A
Efficiency
88% Typically
80 PLUS Rating
80 PLUS Bronze EU 230V
ErP 2014 Lot 3
Yes
Power Good Signal
100 - 500ms
Hold Up Time
>14ms at 100% full load@230Vac
MTBF
>100,000 hours
Protections
OVP / OPP / SCP / UVP / OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Connectors
ATX 24 Pin
x1
EPS 4+4 Pin
SATA
x6
Peripheral 4 Pin
x3
PCI-e 6+2 Pin
x2
AC INPUT
200-240V~ 4A 50-60Hz
DC OUTPUT
+3.3V
+5V
+12V
-12V
+5Vstb
15A
37A
0.3A
3A
TOTAL POWER
100W
444W
3.6W
15W
450W
