Delock PCI-E X1 -> 2+1
Mini pci-e x1 -> 2+1 portos soros port párhuzamos port multi io vezérlő

illesztés: Mini PCIe x1, soros port: 2db, párhuzamos port: 1dbillesztés: Mini PCIe x1, soros port: 2db, párhuzamos port: 1db

Description

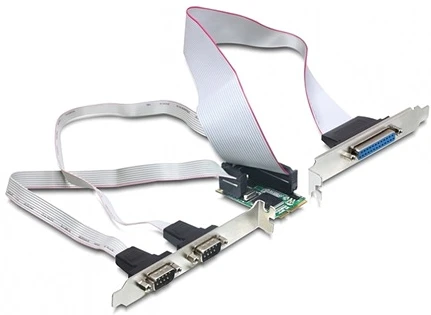

The mini PCIe module by Delock expands your system by two serial and one parallel interface, which you can lead out through the slot bracket. You can connect different serial and parallel devices like printer, scanner, modem etc. to this adapter.

Specification
• Chipset: Moschip MCS9901
• Form factor: miniPCIe full siz
• Interface: PCI Express Revision 1.1
• Connector:
    PCB:   2 x 9 pin COM port pin header
               1 x 25 pin parallel port pin header
    cable: 2 x serial RS-232 DB9 male with screw nuts
               1 x Parallel DB25 female with screw nuts
• Data transfer rate up to 230.4 Kb/s
• Compatible with 16C450 / 16C550 UART
• FIFO: 256 byte
• Mode:
    serial: RS-232
    parallel: SPP/PS2/EPP/ECP - IEEE1284
• Cable length with connector:
    serial ca. 30 cm
    Parallel ca. 28 cm

System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64, Linux ex Kernel 2.6
• Mainboard with a free miniPCIe slot with a PCIe interface

Package content
• MiniPCIe module
• 1 x slot bracket with two serial ports
• 1 x slot bracket parallel
• Driver CD
• User manual

Package
• Retail Box
