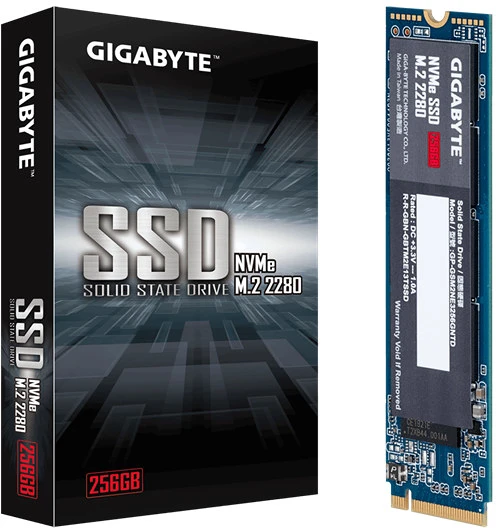

Gigabyte GP-GSM2NE3256GNTD
Ssd m.2 2280 nvme 256gb

Interface

PCI-Express 3.0 x4, NVMe 1.3

Form Factor

M.2 2280

Total Capacity

256GB

Warranty

Limited 5-year or 300TBW

NAND

NAND Flash

External DDR Cache

N/A

Sequential Read speed

Up to 1700 MB/s

Sequential Write speed

Up to 1100 MB/s

Random Read IOPS

Up to 180k

Random Write IOPS

Up to 250k

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5M hours

Power Consumption (Active)

Avg. read : 2.6W ; Write : 2.4W

Power Consumption (Idle)

1.9mw

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

* Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

* Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.

* Speeds based on internal testing. Actual performance may vary.

* TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.

* 1GB = 1 billion bytes. Actual useable capacity may vary.

* 5-years or 300TBW, whichever comes first.
