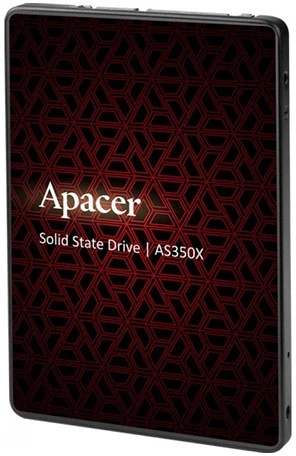

Apacer AP1TBAS350XR-1

Apacer AP1TBAS350XR-1
1tb 2,5" sata3 as350x

Specifications Overview:

? Compliance with SATA Revision 3.1

– SATA 6.0 Gbps interface

– Backward compatible with SATA 1.5 and

3.0 Gbps interfaces

? Capacity

– 128GB, 256GB, 512GB, 1TB

? Performance*

– Seq. Read / Write:

128GB : Up to 560 / 540 MB/s

256GB : Up to 560 / 540 MB/s

512GB : Up to 560 / 540 MB/s

1TB : Up to 560 / 540 MB/s

– (4K) Random Read / Write

128GB : Up to 38K / 75K IOPS

256GB : Up to 38K / 75K IOPS

512GB : Up to 87K / 80K IOPS

1TB : Up to 93K / 80K IOPS

? Flash Management

– Global Wear Leveling

– S.M.A.R.T.

– Power Failure Management

– TRIM

? NAND Flash Type: 3D NAND

? MTBF: 1,500,000 hours

? Endurance (in Terabytes Written: TBW)

– 128 GB: 75 TBW

– 256 GB: 180 TBW

– 512 GB: 425 TBW

– 1 TB: 835 TBW

? Temperature Range

– Operating:

Standard: 0°C to 70°C

– Storage: -40°C to 85°C

? Supply Voltage

– 5.0 V ± 5%

? Power Consumption*

– Active mode:

1,260 mW (128GB)

1,450 mW (256GB)

1,360 mW (512GB)

1,620 mW (1TB)

– Idle mode:

320 mW (128GB)

325 mW (256GB)

320 mW (512GB)

320 mW (1TB)

? Connector Type

– 7-pin SATA signal connector

– 15-pin SATA power connector

? Form Factor

– 2.5”

– Dimensions with 7mm enclosure:

100.00 x 69.85 x 6.90, unit: mm

? Shock & Vibration**

– Shock:1,500 G

– Vibration: 15 G

? SATA Power Management Modes

? RoHS Comply
