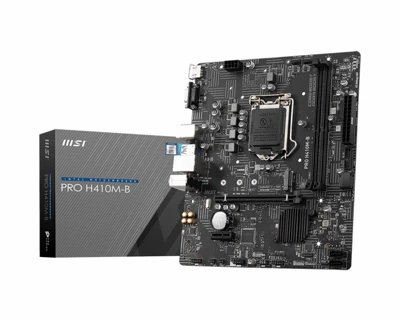

Msi H410M-B
Msi h510 s1200 h410m-b 2xddr4 4xsata3 1xm.2 2xpci-e gbit lan matx

PROCESSOR

Supports 10th Gen Intel ®  Core™ Processors, Pentium ®  Gold and Celeron ®  Processors 1

Processor socket LGA1200

1.  Please go to www.intel.com for more compatibility information.

See supported processors

CHIPSET

Intel ®  H510 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB 1
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel ®  CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel ®  Extreme Memory Profile (XMP)

1.  Please refer to www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (From CPU)
• 1x PCIe 3.0 x1 slot (From PCH)

ONBOARD GRAPHICS

• 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
• 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz  1   2

1.  Available only on processors featuring integrated graphics.
2.  Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M, from H510 chipset)
  • Supports up to PCIe 3.0 x4
  • Supports SATA 6Gb/s 1
  • Supports 2242/ 2260/ 2280 storage devices

1.  SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

USB Intel ®  H510 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AUDIO Realtek ®  ALC897/ ALC892 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Realtek ®  RTL8111 Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector (support additional 2 USB ports)
• 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper

BACK PANEL PORTS

1. HDMI
2. VGA
3. Mouse / Keyboard
4. USB 3.2 Gen 1 5Gbps Type-A
5. LAN port
6. Audio connector
7. USB 2.0
8. USB 2.0



DIMENSIONS

• m-ATX Form Factor
• 9.3 in. x 7.95 in. (23.6 cm x 20.2 cm)
