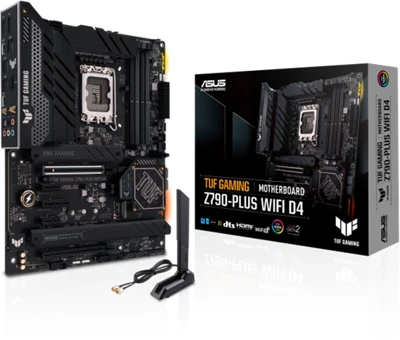

Asus Z790-PLUS
Alaplap s1700 intel z790, atx

CPU

Intel ® ? Socket LGA1700 for 13 th ? Gen Intel ® ? Core™ Processors & 12 th ? Gen Intel ® ? Core™, Pentium ® ? Gold and Celeron ® ? Processors*
Supports Intel ® ? Turbo Boost Technology 2.0 and Intel ® ? Turbo Boost Max Technology 3.0**
* Refer to ? www.asus.com ? for CPU support list.
** Intel ® ? Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel ® ? Z790 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)
/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel ® ? Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to ? www.asus.com ? for memory support list.

Graphics

1 x DisplayPort**
1 x HDMI ® ? port***
* Graphics specifications may vary between CPU types. Please refer to ? www.intel.com ? for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® 13 th ? & 12 th ? Gen Processors*
1 x PCIe 5.0 x16 slot
Intel ® ? Z790 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table at the support site (
