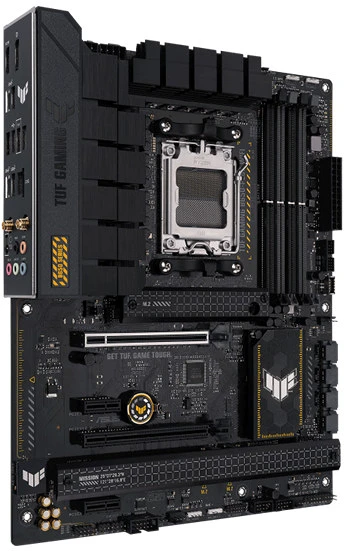

ASUS Alaplap AM5 TUF GAMING B650-PLUS WIFI AMD B650, ATX Model TUF GAMING B650-PLUS WIFI CPU AMD Socket AM5 for AMD Ryzen™ 9000 &? 8000 & 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support? list. Chipset AMD B650 Memory 4 x DIMM, Max. 128GB, DDR5
7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics 1 x DisplayPort*
1 x HDMI® port**
* Supports max. 8K@60Hz as specified in? DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI? 2.1. ? ***? VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop? Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots? * Please check PCIe bifurcation table on? support site (
