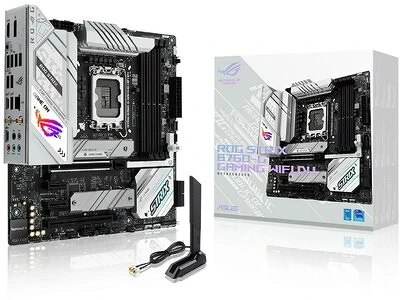

Asus ROG STRIX B760-G GAMING WIFI D4
Alaplap s1700 intel z760, matx

CPU

Intel ® Socket LGA1700 for 13th Gen Intel ®

Core™ Processors & 12th Gen Intel ® Core™, Pentium ® Gold and Celeron ®

Processors

Supports Intel ® Turbo Boost Technology 2.0

and Intel ® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support

list.

** Intel ® Turbo Boost Max Technology 3.0

support depends on the CPU types.

Chipset

Intel ® B760 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4

5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133

MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel ® Extreme Memory Profile

(XMP)

OptiMem II

* Supported memory types, data rate(Speed),

and number of DRAM module vary depending on the CPU and memory configuration,

for more information refer to www.asus.com for memory support list.

* Refer to www.asus.com for the Memory QVL

(Qualified Vendors Lists).

Graphics

1 x DisplayPort**

1 x HDMI ® ***

* Graphics specifications may vary between

CPU types. Please refer to www.intel.com for any updates.

** Support 4K@60Hz as specified in

DisplayPort 1.4

*** Support 4K@60Hz as specified in HDMI

2.1.

Expansion Slots

Intel ® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot(s)

Intel ® B760 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

2x PCIe 4.0 x1 slots

- To ensure compatibility of the device

installed, please refer to
