| Főbb tulajdonságok | |
| Audio | 7.1 HD |
| Chipset gyártó | Intel |
| Foglalat típusa | S1200 |
| Form Factor | ATX |
| Kivitel | Dobozos |
| Raid | Igen |
| Foglalatok | |
| Grafikus foglalat | 2 x PCI-Ex16x |
| PCI foglalatok száma | 0 db |
| PCI-E foglalatok száma | 3 db |
| Hálózat | |
| LAN1 | 100/1000/2500 Mb/s |
| Wireless | Igen |
| Memória | |
| Max memória | 128 GB |
| Memória foglalatok száma | 4 db |
| Memória órajel | 2933 MHz |
| Memória típus | DDR4 |
| Csatlakozók | |
| SATA III | 6 db |
| USB 2.0 | 8 db |
| USB 3.0 | 0 db |
| USB 3.1 | 8 db |
| PS/2 Port | 0 db |
| HDMI | Igen |
| Display Port | Igen |
| M.2 foglalat | Igen |

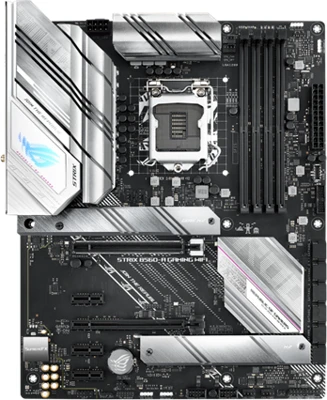

ROG STRIX B560-A GAMING WIFI
Intel ® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, two M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C ® , SATA and Aura Sync RGB lighting
- Intel ® LGA 1200 socket: Ready for 11th Gen Intel ® Core™, 10th Gen Intel ® Core, Pentium ® Gold and Celeron ® processors
- Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Smooth Networking: On-board Intel ® WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C ®
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
- Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS ® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
B560
Graphics
1 x DisplayPort 1.4**
1 x HDMI™ 2.0***
Expansion Slots
1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Intel® Wi-Fi 6
USB
Rear USB:Total 9 ports
Front USB:Total 7 ports
Audio
S1220A
Operating System
Windows 10 64bit
Form Factor
ATX
30.5cm x 24.4cm
